Product Overview

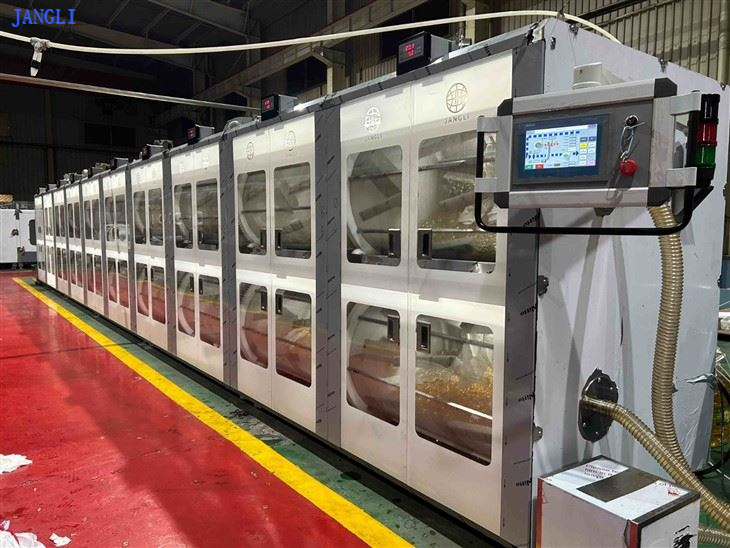

The JLGZ Intelligent Tumble Dryer represents an advanced development in softgel drying technology. Unlike traditional tumble dryers, this system features a closed design with an integrated dehumidifier, enabling automatic drying of softgel capsules within the tumbler at ambient room temperature.
Technical Specifications
The following table provides detailed technical data for the JLGZ model. Specifications may vary depending on configuration.
|
Parameter |
Specification |
|
|
Model |
JLGZ-70I |
JLGZ-100I |
|
Machine Dimensions |
2620x1550x2040(h)(mm) |
2620X1450X2050(h)mm |
|
Basket Number |
4 |
2 |
|
Basket Size |
Φ700×1200(l)mm |
Φ1000×1200(l)mm |
|
Rotating Speed |
0~24 RPM |
0~24 RPM |
|
Fan Flow |
900×8 (m³/h) |
1000×4 (m³/h) |
|
Weight |
~1000 kg |
~800kg |
|
Fluidization Wind Pressure |
200~300 (Pa) |
200~300 (Pa) |
Key Features & Advantages
1. Intelligent Core, Precision Drying: A Revolution in Efficiency
Our Intelligent Temperature and Humidity Precision Control System is central to this innovation. Equipped with high-precision sensors, it continuously monitors temperature and humidity levels throughout the drying chamber, enabling operators to make timely adjustments as needed.
2. Compact Size, Powerful Performance: The Art of Space Integration
Say goodbye to 30-meter-long drying lines! Traditional drying solutions require massive floor space and complex conveying systems, not only incurring high initial costs but also posing stringent challenges for workshop planning.
The JLGZ series adopts a highly integrated rotary drum design, consolidating multiple drying trays into a compact unit. The gentle, uniform heating of the soft capsules is achieved through the drum's steady rotation, eliminating the need for long-distance transportation.
Value Delivered to You:
Great Space Savings: The entire machine can measure no more than 8 meters in length, saving over 70% in floor space, significantly freeing up your production workshop for other capacity layouts.
Lower Investment Threshold: Reduces the massive investment required for factory space and infrastructure, making equipment upgrades and retrofits simple and feasible.
Streamlined Process: The integrated design reduces material transfer steps, lowering labor intervention costs and potential contamination risks.
3. Fully Enclosed, Ultra-Clean: The Barrier for Quality Assurance
Open drying environments are susceptible to contamination from external dust, microorganisms, pests, etc., posing significant hygiene risks and challenges for companies with high GMP certification requirements.
The JLGZ series creates a completely enclosed drying environment. The entire drying process is completed within a sealed stainless steel chamber, eliminating external contamination.
Value Delivered to You:
Highest Hygiene Standards: Provides a clean drying environment that meets GMP requirements for soft capsule production, significantly reducing the risk of product contamination. It is an essential choice for producing high-quality, high-value-added products.
Stable Production Environment: The enclosed system is unaffected by external seasonal or weather-related temperature and humidity changes, ensuring stable and reproducible drying results regardless of the season.
Easy Cleaning and Maintenance: Smooth inner walls and a simple structure facilitate thorough cleaning and disinfection, reducing cross-contamination between batches.
Choosing the JLGZ Intelligent Drying Machine is not just about replacing a piece of equipment-it's about embracing a smarter, more efficient, and more reliable production method. Let us help you seize the initiative in this revolution of production efficiency.
Contact Us Now for a Customized Solution and Quote!
