Softgel inline dryer is a automation drying way for softgel capsules. It is efficient and fast drying system, which will save more human and energy cost. The excess moisture in softgel capsules shell would be reduced to be around 20% after 2h. The inline tumble dryer was developed and designed following the cGMP standards of the pharmaceutical industry. All the material of contact parts was approved by FDA and easy to be clean. All the component was lightweight and disassemble, which is simple to remove and clean the tumble basket by one person. The programmable logic controller and touch screen will offer more reliable control over production and process parameters.
Main Technical Parameters:
Specification | Value |
Blower Flow | 3000 m3/h×32 |
Drying Capacity | 50 Kg/one basket |
Tumble Basket Size | Φ600mm×900mm |
Quantity of tumble dryer | 32 sections |
Electricity Power | 220V, 380V, 400 V/3Phase; 50, 60 HZ |
Total Power | 45 Kw |
Tumble Rotating Speed | 29 RPM |
Dryer Dimension | 15800mm (L)×815mm (W)×2290mm (H) |
Overall Weight | 2000 Kg |
Material | SS316L |
Features:
1. Allow longer drying time, thus reducing the softgel capsules drying time, compared with traditional drying way
2. The tumble basket was light weight and made in stainless steel perforated plate, which is easy to changeover, clean and inspect.
3. The maximum load softgel capsules is 50 Kg for every tumble dryer basket
4. Simple to operate main machine by PLC and install, clear all the component
5. Blower will carry the softgel capsules from sotgel encapsulation machine or pre tumble dyrer to the inline dryer
6. The inline dryer would save large space for the drying room
7. There is lots of our client more than 150 apply this inline drying way
8. The equipment was developed and designed following FDA and cGMP stands. The PLC system was approved by 21 CFR part 11
9. Only one worker was need to operate the equipment,which save more human cost.
10. More than 1000 tumble dryer was sold all over the world
Certificate and Partner
1. CE certificate: With high quality, our inline tumble dryer get the CE certificate with our harding work and good design.
2. More than 100 Partner and 20 country: With high efficiency performance, this softgel inline dryer was very popular around the china and oversea.

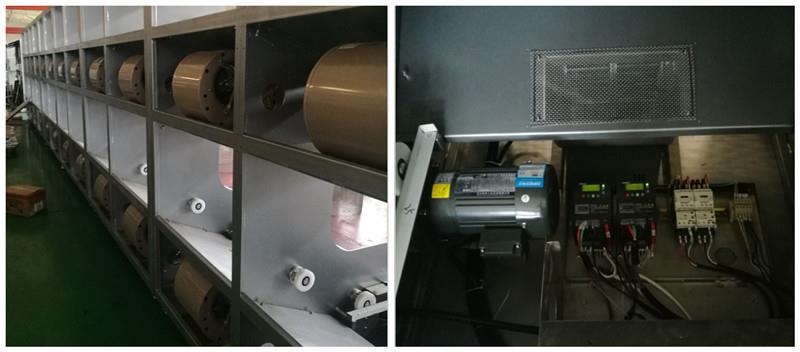

Detail Picture
Mechnism
1. Electrical panel and PlC are incorporated within the stand alone unit
2. Many variable speed direct drive electrical motors rotate the tumble baskets
3. The guide plate design will allow the softgel capsules transfer from one by one and be discharged at the end of drying cycle.
4. PLC system would set the programmable drying and sogftgel transfer time over the drying process.
