Descriptions:
Softgel drying by tumble dryer is the normal and high-efficiency way. This instrument is designed for softgel drying quickly with low-energy. As the softgel capsules was pre-dryied by pre-tumble dryer, its moisture content in the shell will be reduce to be around 20% in the future. All this equipment can be controlled by PLC system or by manual which is based on the client requirement. The Softgel tumble dryer was designed and developed according to the FDA and cGMP guidance.
Main Technical Parameters:
Model | JLGZ-A | JLGZ-B | JLGZ-C | JLGZ-D |
Fan Flow | 900 m3/h | 2200 m3/h | 3000 m3/h | 3000 m3/h |
Drying Capacity | 15 Kg | 30 Kg | 50 Kg | 50 Kg |
Basket Size | Φ320×450mm | Φ520×620mm | Φ600×900mm | Φ600×900mm |
Supply Power | 220V, 380V, 400 V/3Phase; 50, 60 HZ | |||
Total Power | 0.5 Kw | 1 Kw | 1.5 Kw | 1.5 Kw |
Rotating Speed | 21 RPM | 29 RPM | 29 RPM | 29 RPM |
Dimension | 500(L)×400(W)×420(H) mm | 700(L)×700(W)×1100(H) mm | 980(L)×815(W)×1100(H) mm | 980(L)×815(W)×23500(H) mm |
Weight | 40 Kg | 150 Kg | 200 Kg | 400 Kg |
Related Material | SS304and 316L | SS304and 316L | SS304 and 316L | SS304 and 316L |
Features:
1. All the equipment design and production was met the cGMP and FDA requirement
2. PLC control system was met the 21 CFR part 11 requirement
3. With high-efficiency drying capacity, the water content in the shell would be reduce 20%
4. The tumble dryer basket was designed to be easy to remove and clean
5. Softgel dryer obtain more than 50% order in china market
6. Softgel dryer was sold 5000 tumble dryer over 5 years
7. The equipment was sold more than 20 country around the world
Certificate and Partner
1. CE certificate: With high quality, softgel dryer was get the CE certificate, after our team hard working
2. More than 100 Partner: Softgel tumble dryer was sold into many company, university and research institution around the word. As a perfect product, we get more than 100 loyal partner .
3. Export more than 20 country：With high quality performance, this equipment was sold well all over the world. So far, we get more than 1000 orders from more than 20 country

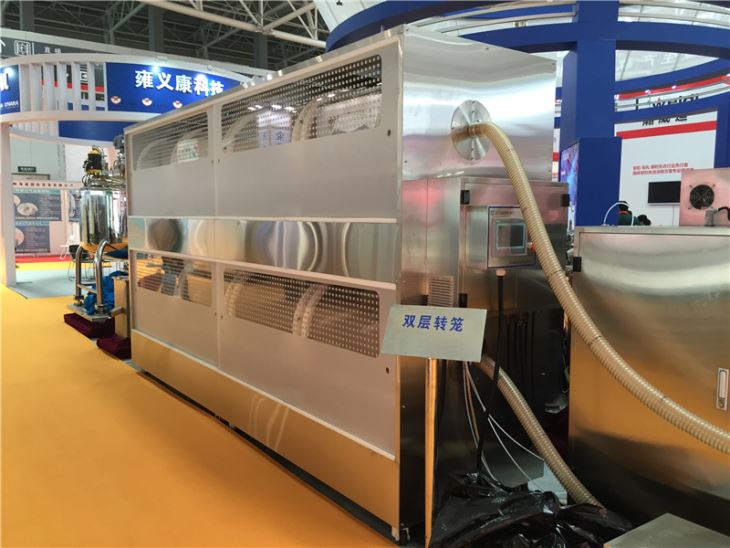

Detail Picture
