Introduction：
The gelatin melting tanks are designed and manufactured based on the gelatin melting process and gelatin property. Three-layers structure is traditional design, which is very helpful to ensure a even heating and working efficient. During whole production activity, cGMP and FDA guideline is followed from design to material and making. It is very popular in the pharmacy, health care, paintball,cosmetics and food industry.

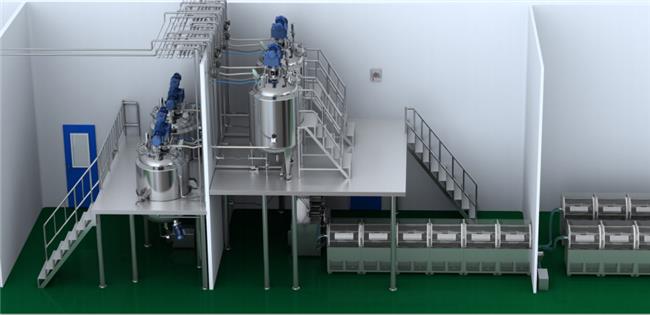

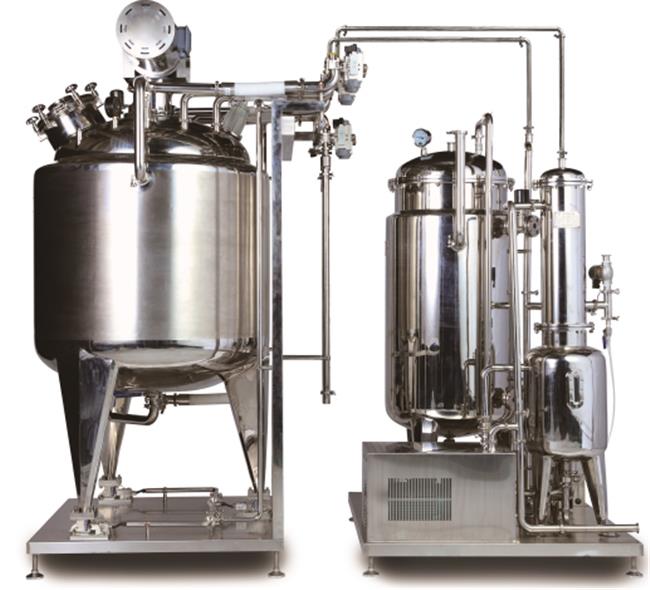

Introduction for automatic gelatin system
It is one unit for gelatin mleting. All the operation step can be controlled by PLC and SIEMENS system.
Automatic water, glycerol and other solution filling
Automatic gelatin power sucking
Automatic weighting
Automatic mixing
Automatic temperature control process
Automatic vacuumizing
CIP cleaning system
1000 recipes automatic loading
...........
Main Technical Parameters:
Technical Specification | JLRG-600 | JLRG-800 | JLRG-1000 |
Valid capability | 150L~600L | 200~800L | 300~1000L |
Vacuum Degree | 0.02~0.09Mpa | 0.02~0.09Mpa | 0.02~0.09Mpa |
Structure | Jacketed Stainless Steel Tank with Insulation (Hot Water/Oil Circulation) | ||
Working Temperature | 0~120℃ | 0~120℃ | 0~120℃ |
Power | 5.5KW | 7.5KW | 7.8KW |
Mixing Speed | 0~35RPM | 0~35RPM | 0~35RPM |
Heating Area | 4.0 m2 | 4.8 m2 | 5.2 m2 |
Dimension | Φ1100mmx2120 mm | Φ1200mmx2220 mm | Φ1300mmx2340 mm |
Weight | 650KG | 750KG | 950KG |
Jacket Work Pressure | Atmospheric | Atmospheric | Atmospheric |
Surface | Mirror/Matte Polish | Mirror/Matte Polish | Mirror/Matte Polish |
Mixing Type | Paddle+Wall Scraper | Paddle+Wall Scraper | Paddle+Wall Scraper |
Equipment installed | Vacuum Meter; Temperature Meter; Pressure Gage;Manhole;Lamp;Air Vent | ||
Electric Voltage | 380V;240V;220V; 50HZ; 60HZ (Customized) | ||
Note | Modification is available based on specific requirement | ||
Features:
Ø High Efficiency: gelatin melting fast, strong constant temperature, vacuum stable smooth operation
Ø GMP and FDA requirements: within the outer wall is smooth, no dead ends, cleaning and maintenance convenient
Ø Better Performance: stable glue homogeneous degree, safe and convenient operation
Ø Better Sealingness: The seal piece and seal ring can be used for more than 3000 continuous hours, during mixing to bear positive/negative pressure in the tank.

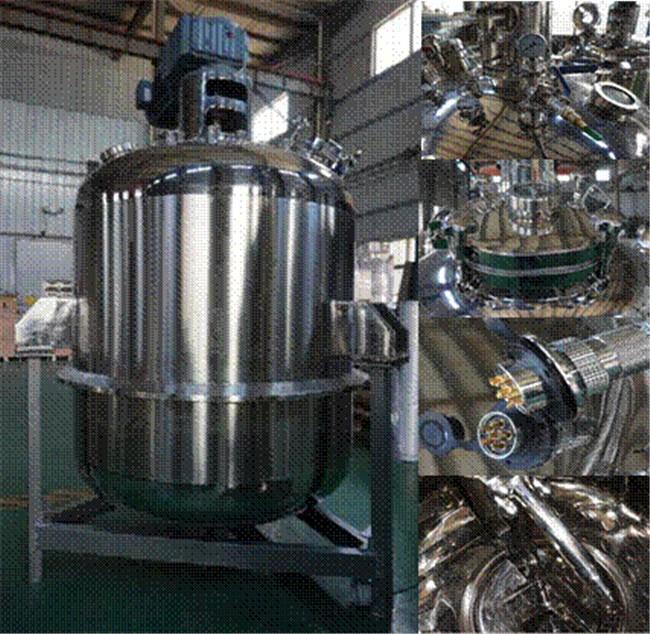

Ø Best Design: Three layers structure with horizontal motor, which is inner tank, heating jacket, insulation jacket.
FAQ:
1. What certificate do you have?
CE and ISO 9001
2. What is your payment term?
TT or L/C. 30% deposit and 70% payment before shipping
3. What is your material of tank?
The contact parts of medicine is SS316L. The left is all stainless steel.
4. What is the normal delivery time?
It is about 50 days.

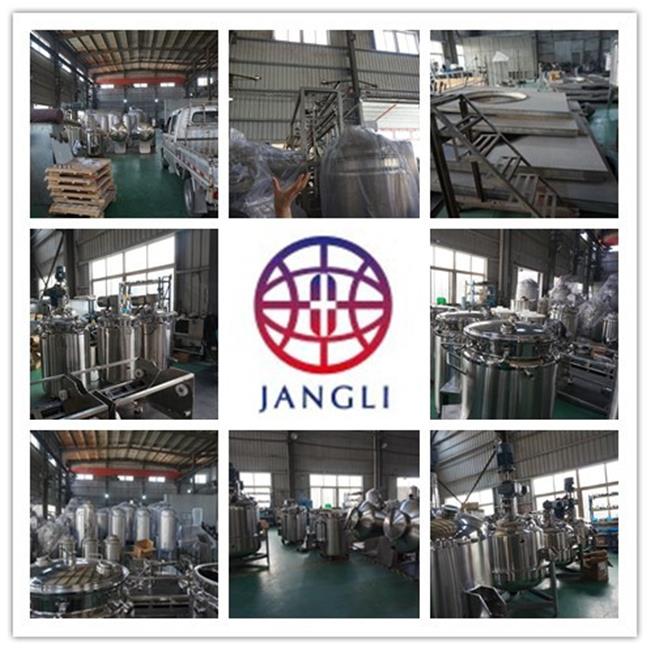

5. How many workers in your factory?
About 100 workers
6.How many years your factory make this equipment?
About 20 years
