Product Brief Introduction:

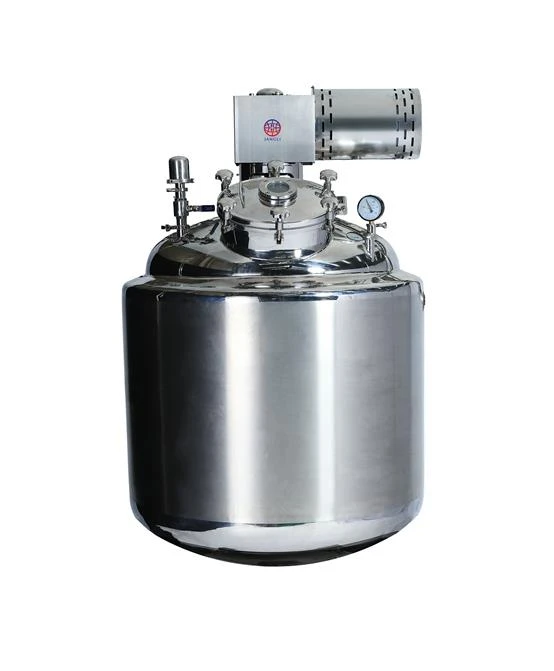

Our JLRG series of Gelatin Melting Tanks follow strict cGMP and FDA guidelines, ensuring high quality products suitable for diverse industries such as pharmacy, healthcare, cosmetics, and food processing. They feature a tri-layer structure for uniform heating and operational efficiency.
Main Technical Parameters:
Technical Specification | JLRG-600 | JLRG-800 | JLRG-1000 |
Valid capability | 150L~600L | 200~800L | 300~1000L |
Vacuum Degree | 0.02~0.09Mpa | 0.02~0.09Mpa | 0.02~0.09Mpa |
Structure | Jacketed Stainless Steel Tank with Insulation (Hot Water/Oil Circulation) | ||
Working Temperature | 0~120℃ | 0~120℃ | 0~120℃ |
Power | 5.5KW | 7.5KW | 7.8KW |
Mixing Speed | 0~35RPM | 0~35RPM | 0~35RPM |
Heating Area | 4.0 m2 | 4.8 m2 | 5.2 m2 |
Dimension | Φ1100mmx2120 mm | Φ1200mmx2220 mm | Φ1300mmx2340 mm |
Weight | 650KG | 750KG | 950KG |
Jacket Work Pressure | Atmospheric | Atmospheric | Atmospheric |
Surface | Mirror/Matte Polish | Mirror/Matte Polish | Mirror/Matte Polish |
Mixing Type | Paddle+Wall Scraper | Paddle+Wall Scraper | Paddle+Wall Scraper |
Equipment installed | Vacuum Meter; Temperature Meter; Pressure Gage;Manhole;Lamp;Air Vent | ||
Electric Voltage | 380V;240V;220V; 50HZ; 60HZ (Customized) | ||
Note | Modification is available based on specific requirement | ||
Main Features:
1. High Efficiency: Fast melding time, consistent temperatures, and a stable vacuum system.
2. Compliance with cGMP and FDA: Smooth outer wall and convenient maintenance due to no dead corners within the apparatus.
3. Superior Operation: Even glue distribution and secure operations. Guaranteed sealing integrity with seals that withstand over 3000 successive operating hours.
4. Advanced Design: Intricately structured three-layer design including a horizontal motor for an inner tank and two jackets for hot water or oil circulation.
5. Powerful Mixer: A paddle and wall scraper mixture guarantees thorough homogenization of the product.
FAQs:
1. Certifications: We hold CE certification and adhere to ISO 9001 standards.
2. Payment Terms: TT and L/C are accepted, requiring a 30% deposit and balance payment prior to shipment.
3. Material: The contact parts of the tank are made of SS316L, while the rest is constructed using stainless steel.
4. Delivery Time: Typically, it takes approximately 50 days to deliver our products.
5. Factory Size & Staff: Our factory employs around 100 staff members with over 20 years of experience in manufacturing these tanks.
.
