Paintball Making Machine

Introduction:

JL-250II paintball production model is an equipment that is in line with the needs of large-scale paintball production. According to the technical requirements of paintball production, this equipment is made of the refined soft capsule equipment and is specially designed for mass production of paintball. The model paintball production equipment adopts the international advanced control system and is made by the international advanced manufacturing center. The device has the advantages of high accuracy, high precision, good stability, easy to clean, easy to operate and so on.

Features:

ØHigh yield：When the host speed at 4rpm, the capacity of 0.5 cal paintball product is 129,600 tablets per hour. Under the same conditions, if the product is a 0.68 cal paintball product, the production capacity is 72,780 capsules per hour.

Ø High accuracy：Load deviation ≤ 1.5%, mold deviation ≤ 1.5%, and mainframe beam deviation ≤ 1.5%.

Ø High degree of automation：The equipment operation control adopts PLC + touch screen to realize automatic regulation of each pellet (encapsulation operation) parameters.

Ø Spray water bath heating: The use of water bath to heat the spray body is conducive to the uniformity of the temperature of the spray body and improve the joint efficiency of paintball.

Ø Spray body electric control：Through the PLC control spray body lift, accurate positioning spray body position is obtained for easy operation.

Ø Automatic supply of plastic：Gelatin boxes with sleeve valve mode completely eliminate the gelatin box plugging problems.

Ø Trace lubrication：The use of advanced technology achieve a trace lubrication of paintball skin to reduce of the paintball tedious cleaning and drying procedures in the follow-up operation

Main Technical Parameters:

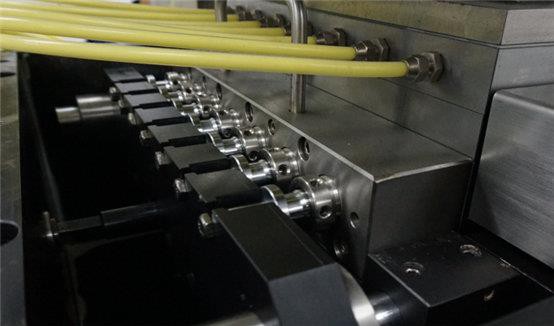

Detailed Pictures of the Machine:

Paintball Machine Working Process:

① Preparation stage of contents：In accordance with the process recipe, the use of liquid containers configured a certain amount of content.

② Preparation stage of gelatin solution：In accordance with the process formula, the use of the glue tank is for the preparation of a certain amount of gelatin solution

③ Liquid flow：The liquid is pumped from the tank to the main hopper by a pump, after which the liquid in the hopper is pumped to the diverter plate by the injection pump.

④ Rubber preparation：Under the vacuum pressure of the thermal insulation barrel, the gelatin liquid flows from the gelatin insulation barrel to the gelatin box. The gelatin box through the hub expands the gelatin into a thin layer of gelatin tape. After the gelatin tape is cooled by the hub, the gelatin tape is sent to the soft capsule mold position through the oil-roll system.

⑤ Material feeding and making pill：The gelatin strips on both sides enter the soft capsule roll mold through the pulling force of the pull net shaft, and the injection pump just simultaneously injects the contents to the roll mold. Using the cavity of the roller mold, the gelatin strip passes through the cavity of the roller mold to form the shell of the paintball, and the shell of the capsule which encloses the content is cut by the roller mold to form a paintball product.

⑥ Product collection：Paintball products roll to the conveyor belt through the guide plate, then the conveyor belt transfer products to the cage for the stereotypes. The remaining rubber enter into the waste bucket

Our Service:

Jangli machinery and equipment company since its establishment has been committed to providing our clients with the best quality paintball equipment and the most attentive service. Company products include but are not limited to paintball making machines, gelatin melting tanks, gelatin service tanks, dye machines, tumble dryer, die roll, drying tray and the like. Satisfy customers one-stop procurement needs.

Before Sale Service:

1) Receive customer advisory information, recommend the appropriate customer equipment according to customer needs.

2) Assist customers in plant design and equipment layout

3) Help customers understand the paintball industry and paintball related production processes and equipment

In-Sale Service:

1) Timely follow up the progress of production and promptly inform the customer of production and details

2) Timely communication with customers to enable customers to understand the production status of the production process.

After-Sale Service:

1) Free customer needs documents and equipment operation manual

2) Customers come to the company for acceptance and can be carried out in the factory operation training

3) Shipping arrangements to ensure the safety of equipment delivered to the customer on time

4) Arrange engineers to install and debug, and free training to make customers better familiar with the use of equipment

5) Provide any consulting service free in the entire life of the equipment. Help customers solve any problems encountered in the production process.
